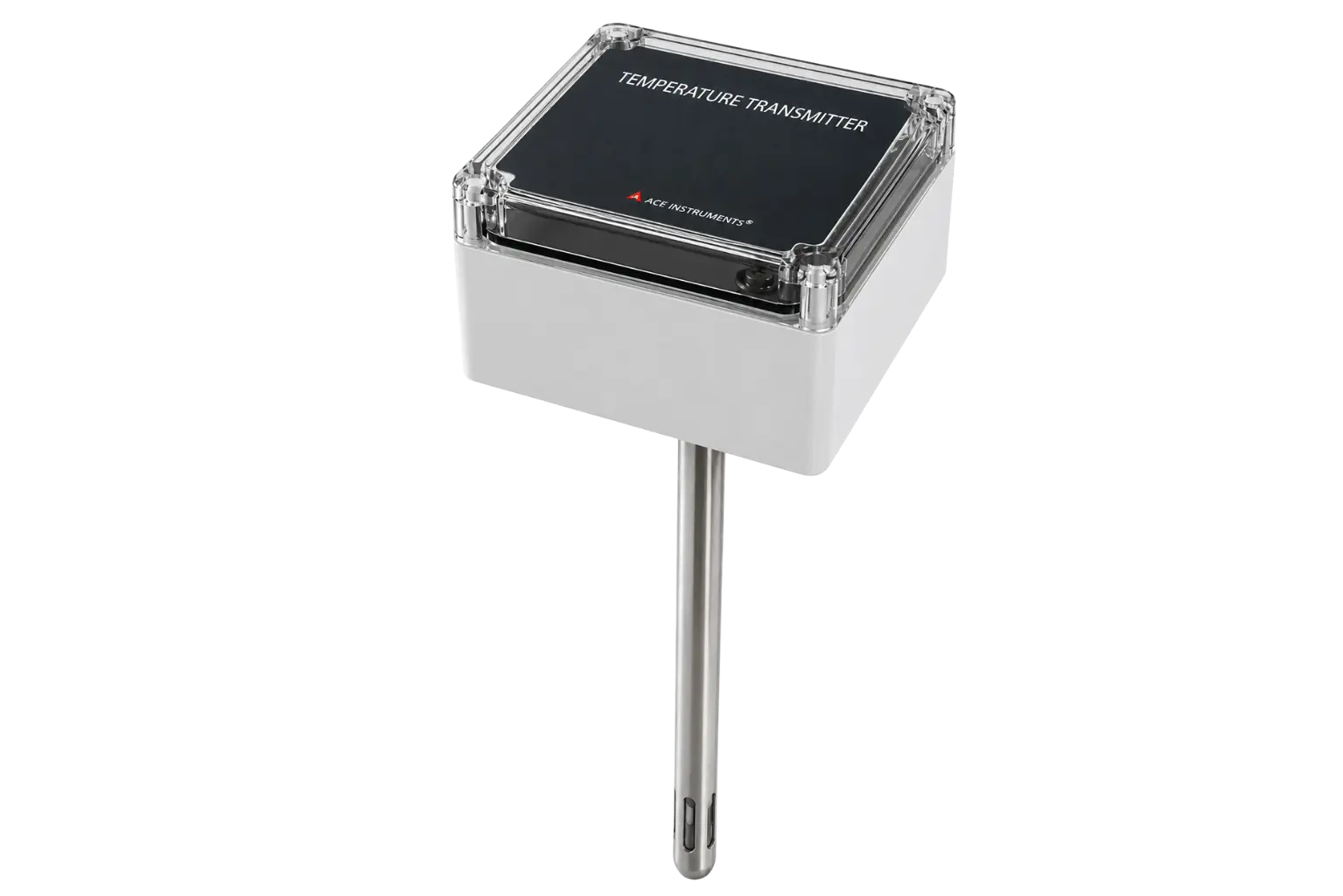

Duct Mounted Temperature Transmitter

Product Overview:

Duct Temperature Transmitter (AI-TTx-D) is a flexible solution for monitoring of temperature, installed in HVAC ducts. The options are digital temperature sensor and NTC 10k type sensors. The device can offer 4-20 mA output for integration for data transmission to SCADA/PLC/BMS systems. Built for pharmaceutical, life sciences, and cleanroom facilities, it gives you a reading at the point where air enters the controlled space, before drift ever reaches the room itself.

Why Duct Temperature Monitoring Matters in Cleanroom HVAC

Temperature monitoring in HVAC ducts in cleanrooms assists users in monitoring air flowing through HVAC ducts and comply with international cleanroom standards.

Temperature as a Contamination Control Parameter

Temperature is not just a comfort setting inside a cleanroom, it is a contamination control variable. Higher temperatures can increase particle generation and outgassing from surfaces and materials, while unstable temperature can affect equipment performance and product stability. This is why cleanroom operators treat temperature control as a core part of maintaining their classification, alongside particle count, differential pressure, and humidity.

How the AI-TTx-D Fits into the Air Handling Unit (AHU) and Duct Network

Cleanroom temperature is delivered through the AHU and distributed through the duct network before it reaches the room. Mounting a transmitter like the AI-TTx-D directly in the supply or return duct lets you measure the air at the point of delivery, not just inside the room. This gives your BMS or facilities team a leading indicator: if supply air temperature drifts, you see it in the duct before it shows up as an out of range reading inside the cleanroom itself.‍

Standards and Guidelines Supported

• ISO 14644-2, Continuous Monitoring for Ongoing Classification Evidence:

  ‍ISO 14644-2 covers routine monitoring of cleanrooms after initial classification, and temperature is one of the environmental conditions it expects to be tracked to show a cleanroom continues to perform to its assigned class between formal requalification tests.
  ‍
• ISO 14644-3, Temperature as a Test Parameter During Qualification:

  ISO 14644-3 sets out test methods for cleanroom performance, and temperature is one of the parameters measured during qualification testing alongside airflow, differential pressure, and recovery rate.
  ‍
• GMP and EU Annex 1 Alignment for Regulated Manufacturing Environments:

  GMP guidelines and EU GMP Annex 1 build on the ISO 14644 framework for pharmaceutical and life sciences facilities, where documented, continuous environmental monitoring, including temperature, supports batch record integrity and inspection readiness.

Neither ISO 14644-1 nor the wider series fixes one universal temperature number for every cleanroom. The acceptable range is set by your product or process requirement, commonly somewhere in the high teens to mid twenties Celsius depending on the application. What the standards do require is that whatever range you set, you monitor and document it consistently, and that is the role the AI-TTx-D plays in your HVAC system.

Key Features

• NTC 10k Ω Sensing Element:

  A well proven sensor type for HVAC duct applications, offering accurate and repeatable temperature readings across normal cleanroom operating ranges.
  ‍
• Durable ABS Duct Mounting Enclosure:

  Houses the transmitter electronics separately from the duct airflow, protecting the unit while keeping the sensing probe in direct contact with the airstream.
  ‍
• Stainless Steel Duct Mounting Probe:

  A 200 mm standard length, 12 mm OD probe that can be customized to suit different duct sizes and insertion depths.
  ‍
• Condensation Resistant, Long Term Stability:

  Rated for 0 to 95 percent relative humidity, non-condensing, so the transmitter continues to perform reliably in ducts where humidity levels fluctuate.
  ‍
• IP65 Rated Enclosure:

  Protects against dust ingress and water jets, suited to the demanding utility spaces around cleanroom HVAC plant rooms.

From Duct Sensor to Readable Data, the Ace Instruments Ecosystem

At Ace Instruments, we endeavor to provide flexible solutions that meet your cleanroom's unique system.

Local Display Option, Reading Values on an Ace Instruments Monitor

If you need an on the spot reading, the AI-TTx-D's output can be paired with an Ace Instruments cleanroom monitor or digital display unit, giving your facilities team a live, on wall reading without needing to open a BMS screen. This is a common setup where a room needs a visible temperature reference for operators or auditors walking the floor.‍

BMS Integration Option, Sending Readings to Your Building Management System

For facilities that centralize monitoring, the transmitter's output feeds directly into your Building Management System, so temperature trends sit alongside pressure, humidity, and particle data in one place. This supports the documented, continuous monitoring expected under ISO 14644-2 and GMP environmental monitoring programs, and it means deviations trigger alerts automatically rather than depending on manual checks.

Choosing Between Standalone Display and BMS Based Monitoring

Many facilities run both: a local display for quick visual reference on the floor, and a BMS connection for centralized logging, trending, and alarm management. If you are unsure which setup fits your facility, our team can help match the AI-TTx-D to the right display or BMS configuration based on your existing infrastructure.

Applications

• Pharmaceutical Manufacturing:

  Supports temperature stability in production areas where drug quality and shelf life are sensitive to environmental fluctuation.
  ‍
• Life Sciences:

  Helps maintain consistent conditions in research and development spaces where experimental results depend on a controlled thermal environment.
  ‍
• Hospitals and Laboratories:

  Provides reliable duct level temperature data for sterile processing areas, diagnostic labs, and other spaces where patient safety and sample integrity depend on stable conditions.
  ‍
• Bulk Drugs:

  Assists bulk drug manufacturing facilities in maintaining the environmental consistency needed to protect raw material and in process product quality.

Compliance and Certifications

• ISO 9001:2015: Ace Instruments manufactures the AI-TTx-D under an ISO 9001:2015 certified quality management system.
• CE Marking: The product carries CE marking for compliance with applicable European standards.
• Factory Calibration Certificate: Every unit ships with a factory calibration certificate, supporting your qualification and audit documentation.

Frequently Asked Questions (FAQs)

1. What is the AI-TTx-D Duct Mounted Temperature Transmitter?

The AI-TTx-D is a duct-mounted temperature transmitter designed to continuously measure the temperature of air flowing through HVAC ducts. It is widely used in pharmaceutical cleanrooms, biotechnology facilities, hospitals, laboratories, and other controlled environments where precise air temperature monitoring is essential for maintaining process stability and regulatory compliance.

2. Why is duct temperature monitoring important in cleanrooms?

In cleanrooms, the temperature of supply air directly affects room temperature, occupant comfort, product quality, and HVAC performance.

Monitoring temperature inside the duct allows facility teams to detect changes before conditioned air reaches the cleanroom. This enables the Building Management System (BMS) to respond quickly and maintain stable environmental conditions required for pharmaceutical manufacturing and other critical processes.

3. What does the AI-TTx-D measure?

The AI-TTx-D continuously measures the temperature of air flowing through HVAC ducts and transmits the measured value to a Building Management System (BMS), PLC, or HVAC controller for monitoring and automatic temperature control.

4. Why measure temperature inside the duct instead of inside the cleanroom?

A duct-mounted temperature transmitter measures the air immediately after it leaves the Air Handling Unit (AHU) and before it enters the cleanroom.

This allows the HVAC system to detect heating or cooling problems early, respond faster to temperature changes, and maintain stable cleanroom conditions before occupants or manufacturing processes are affected.

5. Where should the duct temperature transmitter be installed?

For accurate measurements, the sensing probe should be installed in a straight section of ductwork where airflow is well mixed.

Recommended installation locations include:

• At least 10 duct diameters downstream from bends, dampers, or diffusers.
• In the main supply air duct after the Air Handling Unit (AHU).
• In the return air duct when monitoring return air temperature.
• Away from heating or cooling coils that may create uneven airflow.

Proper installation ensures representative temperature measurements.

6. Where is the AI-TTx-D commonly installed?

Typical applications include:

• Pharmaceutical cleanrooms
• Sterile manufacturing facilities
• Biotechnology laboratories
• Hospital operating theatres
• Isolation rooms
• Air Handling Units (AHUs)
• Supply air ducts
• Return air ducts
• Research laboratories
• Electronics manufacturing cleanrooms

7. Why is stable temperature important in pharmaceutical cleanrooms?

Temperature stability helps maintain consistent manufacturing conditions, supports product quality, improves operator comfort, and assists in meeting regulatory requirements such as GMP. Stable environmental conditions also help ensure repeatable production processes and reduce the risk of product deviations.

8. Can the AI-TTx-D help maintain GMP compliance?

Yes. Continuous duct temperature monitoring provides real-time environmental data that can be integrated into Building Management Systems for continuous monitoring, alarm management, trend analysis, and documentation. This supports facilities operating under Good Manufacturing Practice (GMP) and other quality management requirements.

9. Can the AI-TTx-D be integrated with a Building Management System (BMS)?

Yes. The transmitter supports industry-standard communication options, including:

• 4 - 20 mA output
• 0 - 10 V output (depending on model)

These outputs allow seamless integration with Building Management Systems, PLCs, SCADA systems, and HVAC automation controllers.

10. Can the AI-TTx-D improve HVAC energy efficiency?

Yes. Continuous monitoring of duct temperature allows the Building Management System to optimize heating and cooling output based on actual supply air temperature. This helps reduce energy consumption while maintaining stable environmental conditions inside the cleanroom.

11. What type of temperature sensor does the AI-TTx-D use?

The AI-TTx-D uses a high-quality NTC 10 kΩ temperature sensing element designed to provide accurate, stable, and reliable temperature measurements in HVAC duct applications. The sensor offers excellent long-term performance and is well suited for pharmaceutical and cleanroom environments.

12. Is the AI-TTx-D suitable for continuous monitoring?

Yes. The transmitter is designed for reliable 24×7 continuous operation in pharmaceutical, healthcare, industrial, and commercial HVAC systems where uninterrupted temperature monitoring is required.

13. Does the transmitter require calibration?

The AI-TTx-D is factory calibrated before shipment. Periodic verification is recommended for regulated environments such as pharmaceutical manufacturing, cleanrooms, and laboratories to ensure continued measurement accuracy.

14. Is installation easy?

Yes. The duct-mounted probe is designed for straightforward installation through the duct wall using standard mounting hardware. Its compact design makes it suitable for both new HVAC installations and retrofit projects.

15. What are the advantages of using the AI-TTx-D?

Key benefits include:

• Continuous duct air temperature monitoring
• Early detection of HVAC temperature changes
• Supports GMP and cleanroom environmental monitoring
• High measurement accuracy
• Easy BMS and PLC integration
• Multiple communication options
• Reliable industrial-grade performance
• Low maintenance
• Suitable for pharmaceutical and healthcare applications

16. Who typically uses the AI-TTx-D?

The AI-TTx-D is widely used by:

• Pharmaceutical manufacturers
• Cleanroom operators
• HVAC contractors
• Building automation integrators
• Facility managers
• Hospital engineering departments
• Biotechnology companies
• Laboratory managers
• Industrial maintenance engineers
• Cleanroom consultants

17. Why choose ACE Instruments?

ACE Instruments has over 30 years of experience in manufacturing cleanroom and HVAC environmental monitoring solutions. Customers choose our products for their reliable performance, accurate temperature measurement, industrial-grade construction, easy BMS integration, responsive technical support, and proven performance in pharmaceutical, healthcare, biotechnology, and industrial applications.

18. How do I choose the right Duct Mounted Temperature Transmitter?

Choosing the right AI-TTx-D depends on your HVAC system design, duct size, communication requirements, installation location, and cleanroom classification. Our application engineers can help you select the most suitable transmitter for pharmaceutical cleanrooms, biotechnology facilities, hospitals, laboratories, and other critical HVAC applications where continuous duct temperature monitoring is essential.
